Project Summary
The project is under the MIC’s responsibility and is part of its plan to develop local production capabilities of Drones in collaboration with a German specialized company named EMT.
Project Brief:
Client
MIC Corporation
Main Contractor
Arabian Gulf Co.
Consultant
DORSCH International Consultants / KHATIB & ALAMI
Location
Al-Kharj, KSA
Scope of work
Total electro-mechanical work
Project duration
2015 - 2018
Contract Value
18,000,000$




















PROJECT DETAILS
Scope of project
The scope of the project is to produce parts for military use. Its construction consists of Main Buildings (factory & Training Center) and Service Buildings (Truck Wash & Service Block) with Security Gates (Main & Secondary). With a total build-up area of 70263 m²
Significant Installation
MECHANICAL:

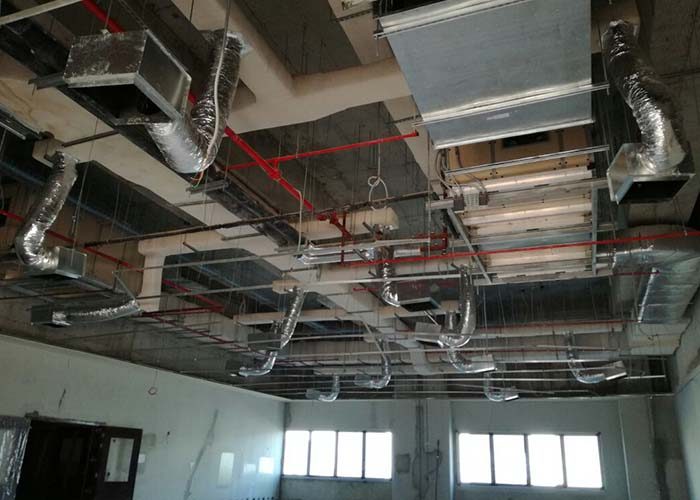

HVAC System
- Chilled water system to obtain cooling for the main buildings with a total capacity of 788 TR
- Crack Units to get Cooling in IT & Control Rooms.
Plumbing System
- Domestic Water Pumps to service all Wet Areas of the Project.
- Drinking Water Pumps to service Kitchens & Cafeterias Areas in Main Buildings.
- Truck Wash Pumps.
- Irrigation Pumps for serving all external Landscapes.
- Supply and installation of all Toilet Fixtures & Accessories of all Buildings (Main / Secondary & Service building).
Fire Fighting System
- Installing Fire Pumps Sets (Diesel / Electric & jockey) for protecting Main Building with a total capacity of 1000 GPM with a head of 13.5 Bar
- Installing of Novec1230 System & FM-200 for IT & Control Rooms in Main Buildings.
- Installing of Automatic Fire Extinguisher in Generator Room.
- Installing of Fire Hydrant for the External Area.
ELECTRICAL:
Medium Voltage
- Installation of Metered RMU SM6, 13.8KV, 630A, 3-Way (1xDM1-A + 2xIM) MRMU as per SEC Standard.
- Installation of Medium Voltage Switchgear SM6, 13.8KV, 630A, 21kA/1Sec 7-Column (6xDM1-A + 1xCM).
- Installation Cast Resin Transformer TRIHAL Type 1600KVA (3No.) & 1000KVA (1 No.).
Low Voltage
- Prime Generator with rating 2250 KW, 60Hz, 400V.

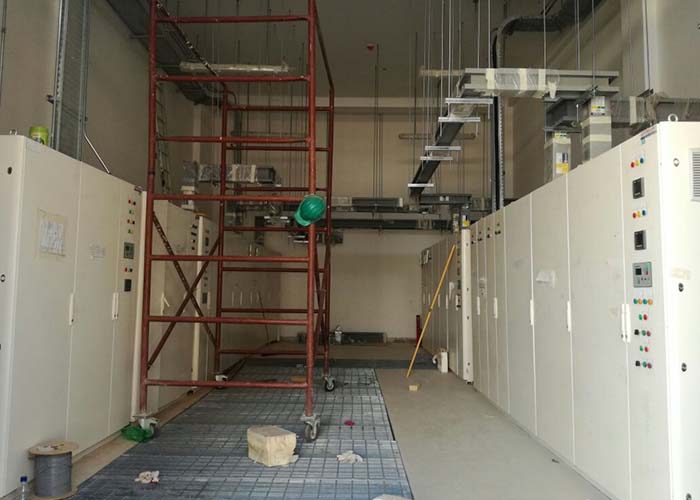

- Supply and Installation of Main Distribution panel boards (Prisma Plus P), SMDBs (Prisma Plus P), MSPs (Prisma Plus P), Automatic Transfer Switches, Lighting panels (Disbo), and power panels.
- Low Voltage & Medium Voltage Cable XLPE/PVC
- Duct Banks – Underground.
- Low Voltage Feeder Busway.

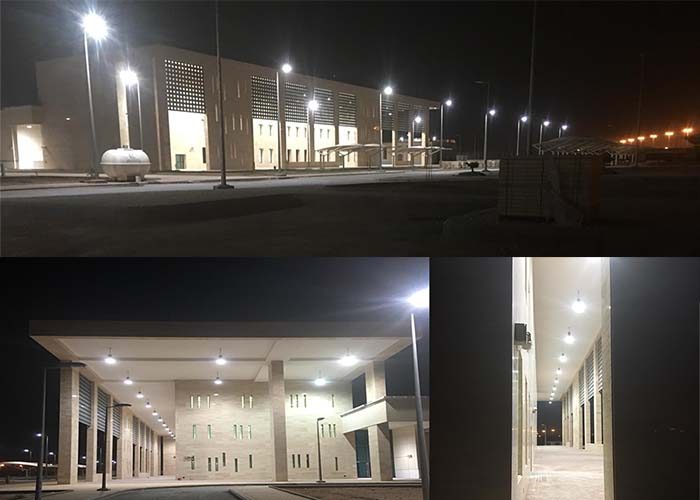

- Lighting Fixture (Interior & Exterior)
- Wiring Devices.
- Disconnect Switch.
- Supply and installation of Earthing System and Lightning Protection system.
- Installation of Uninterruptible power supply.
Low Current
- CCTV (IP) Security system
- Fire Alarm & Emergency Communication System.
- Building management system (BMS).
- Audio Visual system.
- Data and Voice Cabling system, Communications Backbone Cabling, Communications Equipment Room Fittings
- Access Control system.
- Intrusion system.
