Multi-Story Car Parking In KAIA
Project Summary

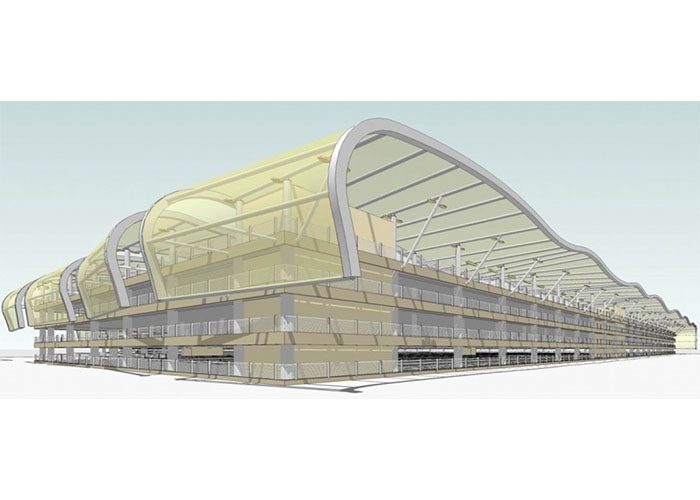

The Multi-Story car park is a part of the leading project of King Abdul Aziz International Airport-Jeddah. The build p area of the buildings is 250,000 m².
Engineering, Shop-drawings, Technical Submittals, mobilization, Supply, Installation, Testing & Commissioning, As-built drawings, Operation, Maintenance manuals, Startup, spare parts, training, and a one-year warranty from preliminary handover, for the electrical and mechanical systems HVAC, Plumbing & Fire Protection.
PROJECT BRIEF:
Client
General Authority of Civil Aviation (GACA)
Main Contractor
SAUDI BIN LADIN GROUP
Consultant
Dar Al Handasah
Location
Jeddah, KSA
Scope of work
Total electro-mechanical work
Project duration
2012-2013
Contract Value
22,000,000$
PROJECT DETAILS
MECHANICAL SYSTEMS
The Mechanical system scope of works shall include the supply and installation but not limited to the following:
- A/C equipment, including all accessories.
- Chilled water supply, including piping, pumps, and related accessories from interface points up to all the mechanical rooms.
- Ductwork and related accessories from mechanical rooms’ air handling units up to all served zones, including supply and installation of grilles/diffusers in coordination with false ceiling.
- Kitchen and toilets ventilation systems via dedicated fans and ductwork for served zones up to termination points.
- Smoke Management System via dedicated smoke fans and ductwork.
- Building Management System.
- The Rainwater piping system,
- Drainage piping system.
- The Waste drainage system includes Sumbirsible pumps with all related accessories.
- The domestic water supply system includes cold and hot water supply piping to various plumbing fixtures and toilet components, including water heaters, booster & circulating pumps, sanitary fixtures, and fittings.
- Grey water system.
- Irrigation system including network, storage, pumping, and treatment as deemed necessary.
- Fire protection system including fire pumps and fire protection network involving riser standpipes, fire hose cabinets (Class I & Class III), fire extinguishers, inlet department connections, automatic wet sprinklers, FM200, deluge, and preaction Systems.
- The ventilation system includes fans, ductwork, and relevant accessories.
- The stair pressurization system includes ductwork and relevant accessories.
- All types of interceptors.
ELECTRICAL SYSTEMS
The Electrical system scope of works shall include the supply and installation but not limited to the following:
- Secondary Unit Substations.
- LV power distribution networks.
- Power Factor Correction Units.
- Static Uninterruptible power supply units (UPSs).
- Emergency Central Battery Systems (ECBs).
- Low Voltage Sub Distribution Boards (SDBs) and Branch-Circuit Panelboards (ELPs and EPPs).
- Motor Starters and Motor Control Centres (MCCs).
- Low Voltage Cables and Wires.
- Raceways, Conduits, Cable Trays, and accessories.
- Wiring Devices.
- Lighting Installations and Control.
- Grounding Systems.
- Lightning Protection Systems.
- The local SCADA system includes downstream control raceways, wiring for the Medium Voltage equipment, and upstream interface/connection to the Load Centres SCADA system.
- Seismic Restraint system.
